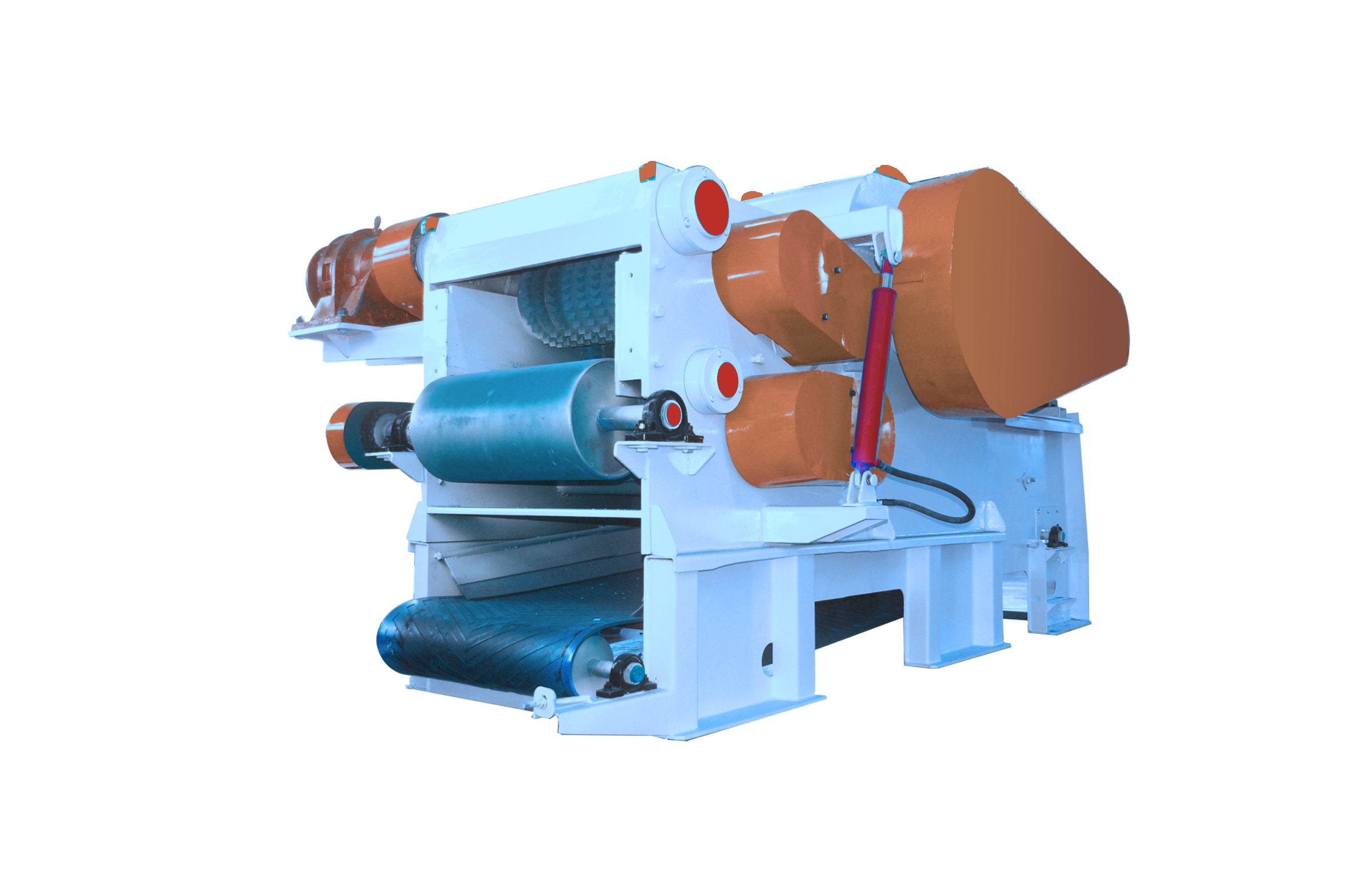

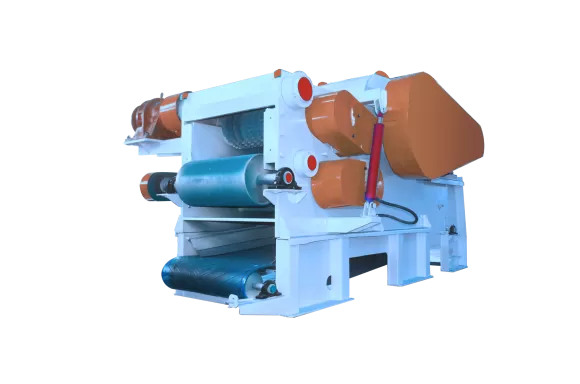

The body of the wood chipper is composed of frame, knife roller, upper and lower feeding roller, conveyor belt, hydraulic system, etc., with high chip quality and wide application of raw materials. Working principle of the machine, the machine is driven by the motor to rotate the knife roller at high speed, and the wood into the machine is cut into small pieces and screened through the screen. The wood chips that meet the customer's size requirements are sent out by the discharging belt and enter the next process; The chips that do not meet the size requirements continue to be cut in the drum cutting chamber until they meet the standard. The equipment is mainly used for raw materials such as logs, small path wood, wood cutting residues (such as branches) and wood processing residues (such as veneer, slat, log core, waste veneer, etc.). It can also be used to cut non-wood raw materials, such as hemp pole, reed, bamboo, etc.
Raw material
Wood chipper raw materials are wood logs,small path wood,wood cutting residues(such as branches)and wood processing residues(such as veneer,slat,log core,waste veneer,etc).It can also be used to cut non-wood raw materials, such as hemp pole, reed, bamboo, etc.
Parameter
| Model | Capacity(t/h) | Motor Power(kw) | Feeding size | Blade size |
| YMPJ216 | 4-6 | 55+3+4+1.5 | 545*230 | 30-1100 |
| YMPJ218 | 6-10 | 110+5.5+5.5+1.5 | 710*360 | 30-1100 |
| YMPJ2113 | 15-25 | 315+11+11+3 | 1100*530 | 30-1100 |
Key points
Product advantages:
1. After the wood chipper case body is CNC cut and welded, it is processed by a boring machine as a whole, and all bearing mounting holes are finished by boring to ensure the accuracy of bearing installation. The upper and lower joint parts of the box are processed by a milling machine, and the installation and coordination accuracy is high. The thin plate material is cut by CNC laser, the cutting surface is as smooth as a mirror, the edges are neat, and the raw material is not easy to leak.
2. The main shaft cutter roller assembly adopts expansion sleeve connection, which is convenient for disassembly, assembly, maintenance and replacement. In this series of wood chipper machines, the main shaft has undergone quenching and tempering heat treatment to refine the grain, with good plasticity and high strength. The main machine knife roller is the core component of the equipment. All the factory knife rollers use a dynamic balancer to correct the dynamic balance of the knife roller, and the accuracy is less than 25g.
3. Ensure that the equipment runs smoothly and without vibration during high-speed operation.
Accessories is introduced
Export case
Malaysia 2113 Model 20-25t/h Wood Logs Wood Chipper
Japan 218 Model Wood Logs Wood Chipper
Indonesia 2113 Model Board Wood Chipper
Philippines 2113 Model 20-25t/h Wood Chipper
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
FAQ
1. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.
(3) We can negotiate specific payment terms with our client.
2. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.
3. How about the documents after shipment?
After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
