Advantage

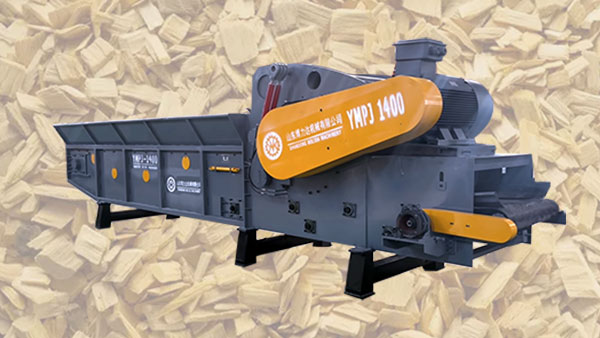

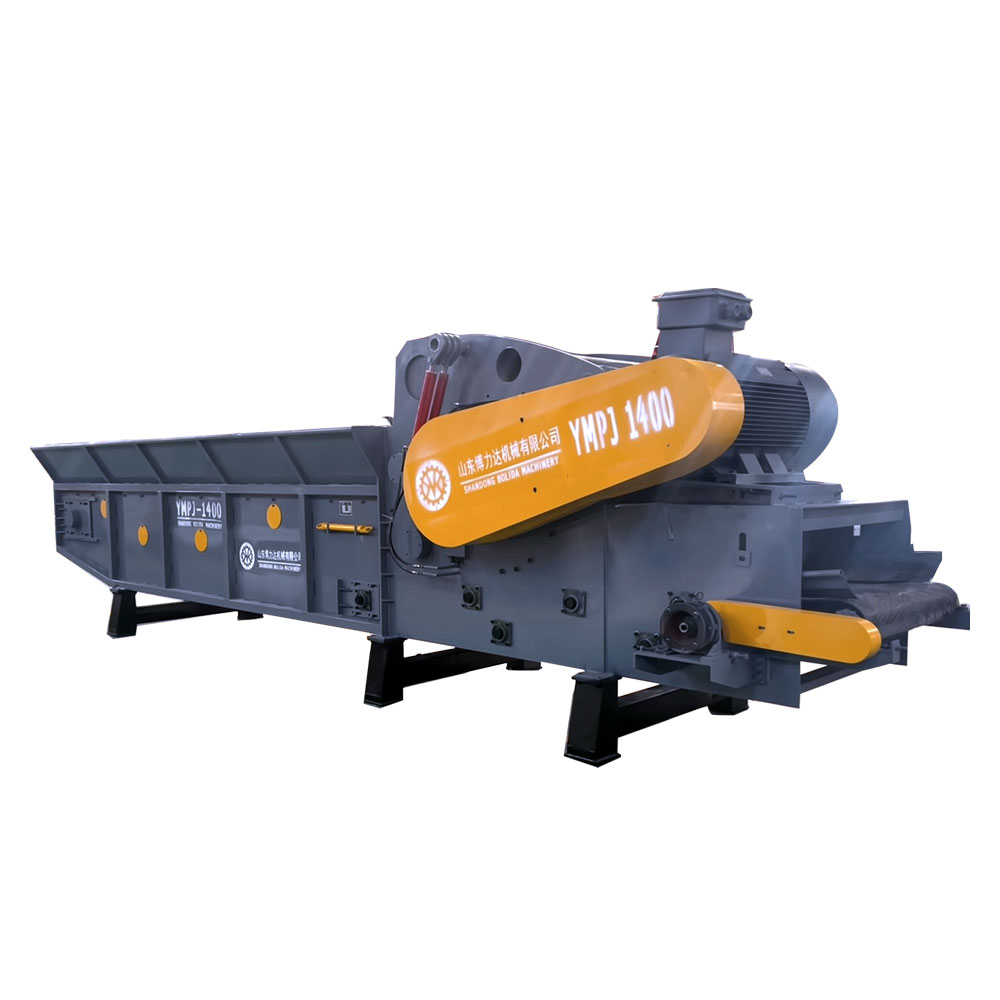

The comprehensive crusher is composed of a machine base, knife rotor, upper and lower feeding mechanisms, feeding devices, and hydraulic buffering systems. It is mainly used for crushing and crushing materials such as wood log, construction templates, demolition materials, and templates.
The wood crusher mainly relies on impact energy to complete the task of crushing wood. The hammer type comprehensive crusher, when in operation, the motor drives the rotor to rotate at high speed, and the wood uniformly enters the chamber of the comprehensive crusher. The high-speed rotating hammer head impacts, cuts and tears the wood, causing it to be broken. At the same time, the gravity of the wood itself causes the wood to rush from the high-speed rotating hammer head to the baffle and sieve bar inside the frame. A sieve plate is installed at the lower part of the rotor, and the particles smaller than the sieve hole size in the crushed wood are discharged through the sieve plate. The wood larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammer. It is mainly used for breaking round wood, small diameter wood, branches, branches, boards, Flat noodles, bamboo and other materials
Video show
|
Raw material
Bamboo
Branch
Waste wood board
Wood pallet
Wood
Parameter
| Model | Power(kw) | Feed port size(cm) | After chipping size(mm) | Capacity(t/h) | Weight(t) |
| YMPJ1300-300 | 110+4+5.5+3+1.5 | 1300*300 | 30-100 | 6-10 | 8.5 |
| YMPJ1300-600 | 160+7.5+7.5+3+3 | 1300*600 | 30-100 | 12-15 | 11.5 |
| YMPJ1400 | 220+7.5+7.5++3+3 | 1400*600 | 30-100 | 15-20 | 14 |
| YMPJ1650 | 220+11+7.5+3+4 | 1650*600 | 30-100 | 18-25 | 16 |
| YMPJ2113 | 315+11+11+3 | 1100*530 | 30-100 | 15-25 | 20 |
| YMPJ2116 | 410+18.5*2+4+5.5 | 1250*700 | 30-100 | 40-60 | 45 |
Key points
1. Feeding chain plate: all models adopt feeding chain plate, chain plate is Q345 steel plate.
2. The main machine includes: main machine box, upper and lower feeding structure, spindle cutter roller, motor, etc.
3. Wearing parts: flying blade, fixed blade, bearing, triangle belt,etc.
4. The blade material is H13 steel .The hammer head is made of high manganese steel Mn13Cr2 or Mn13, and the surface is surfacing with YG8 carbide particles.
Accessories is introduced

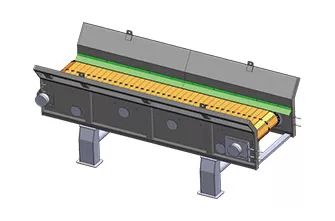

feed chain conveyor
feed roller

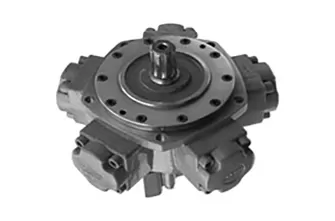

hydraulic motor

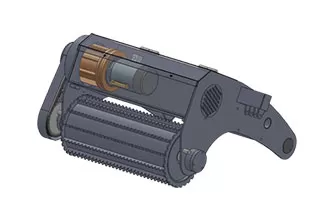

knife rotor
Export case

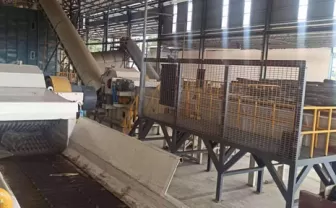

Malaysia 2113 Model 20-25t/h Wood Logs Wood Chipper
Indonesia 2113 Model Board Wood Chipper
Vietnam Mobile Diesel Wood Chipper
Japan 218 Model Wood Logs Wood Chipper
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
FAQ
1. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.
(3) We can negotiate specific payment terms with our client.
2. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.
3. How about the documents after shipment?
After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
