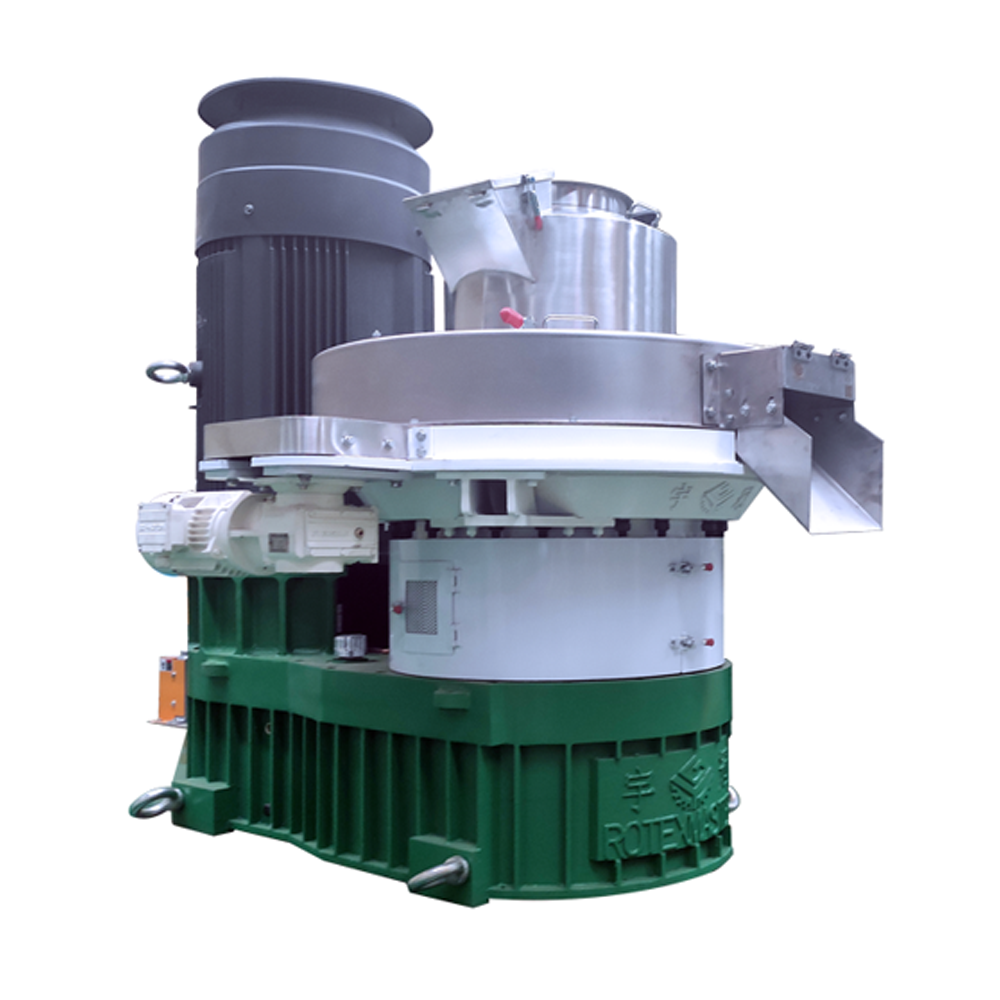

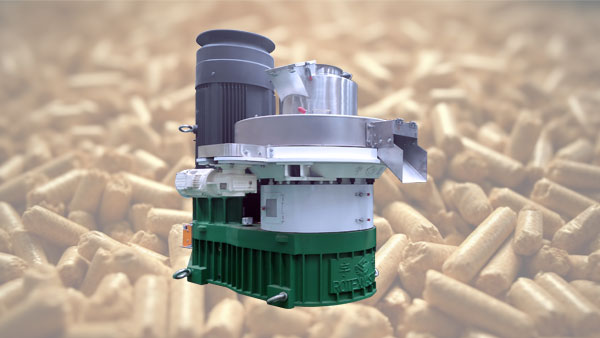

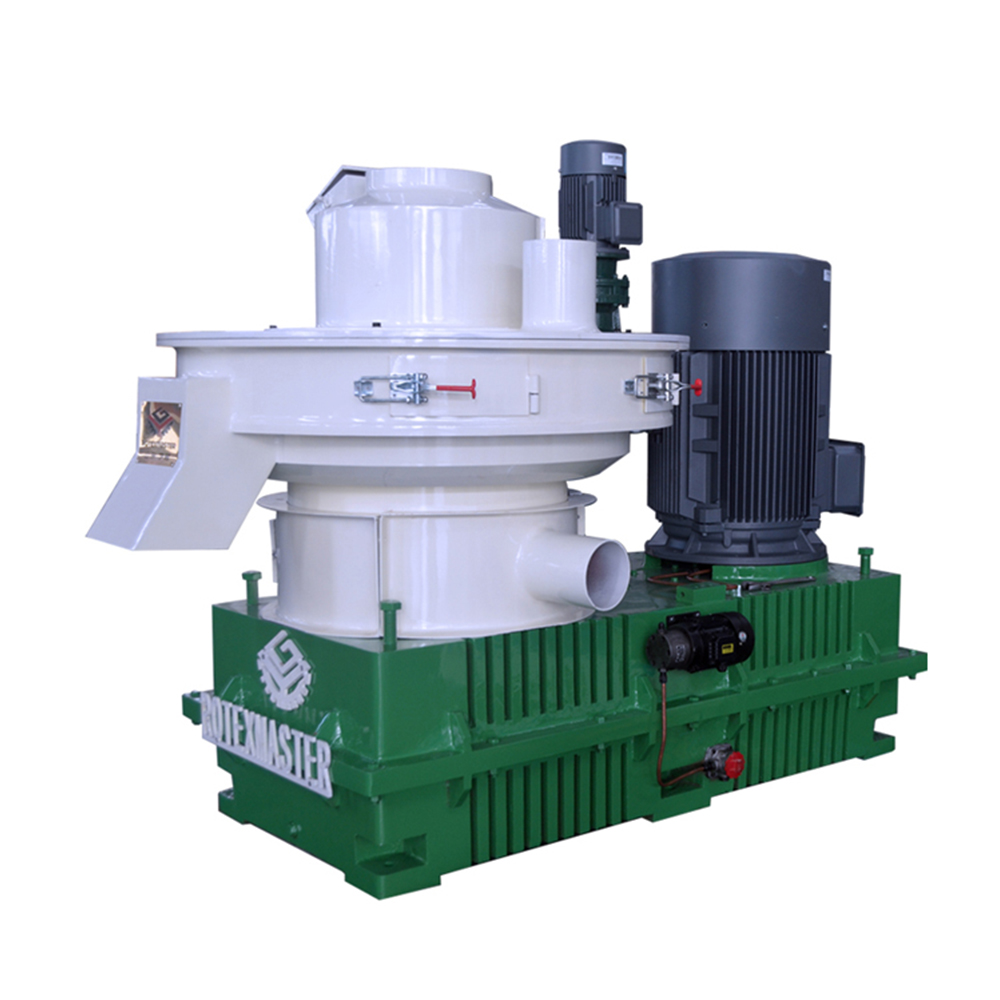

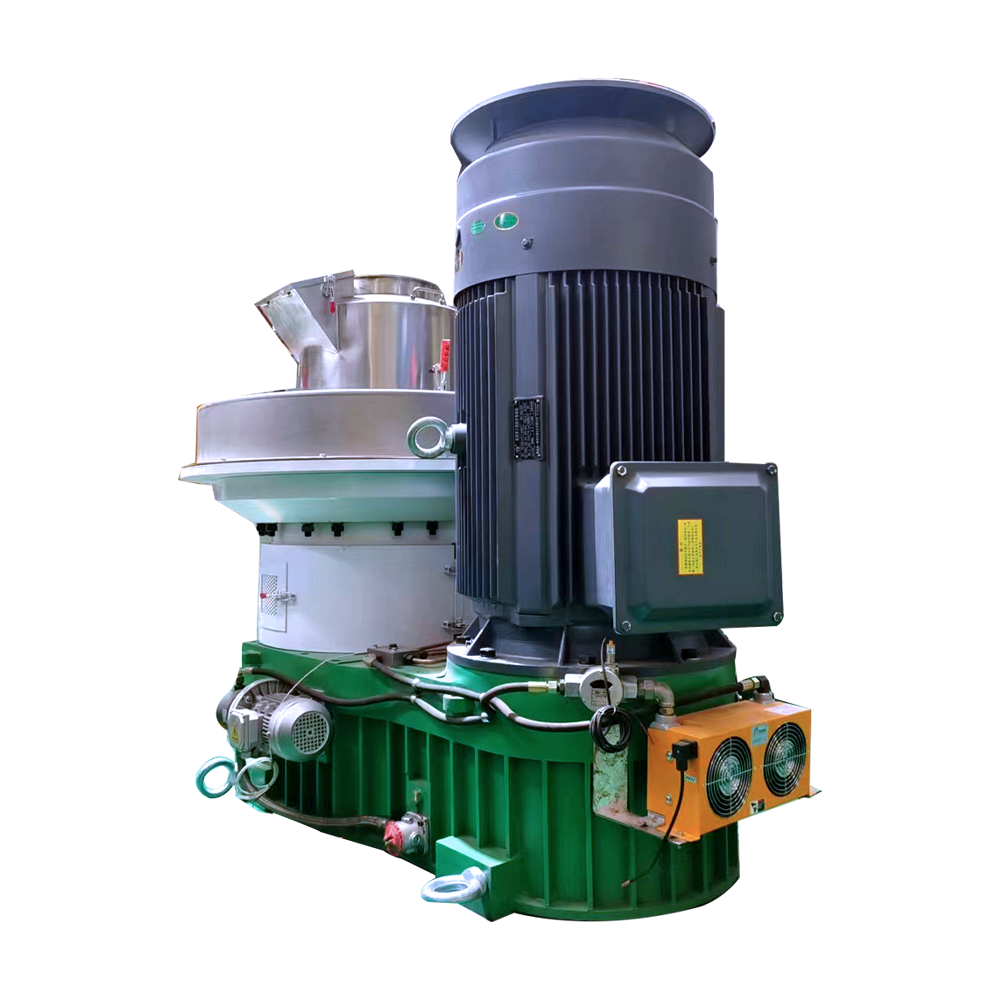

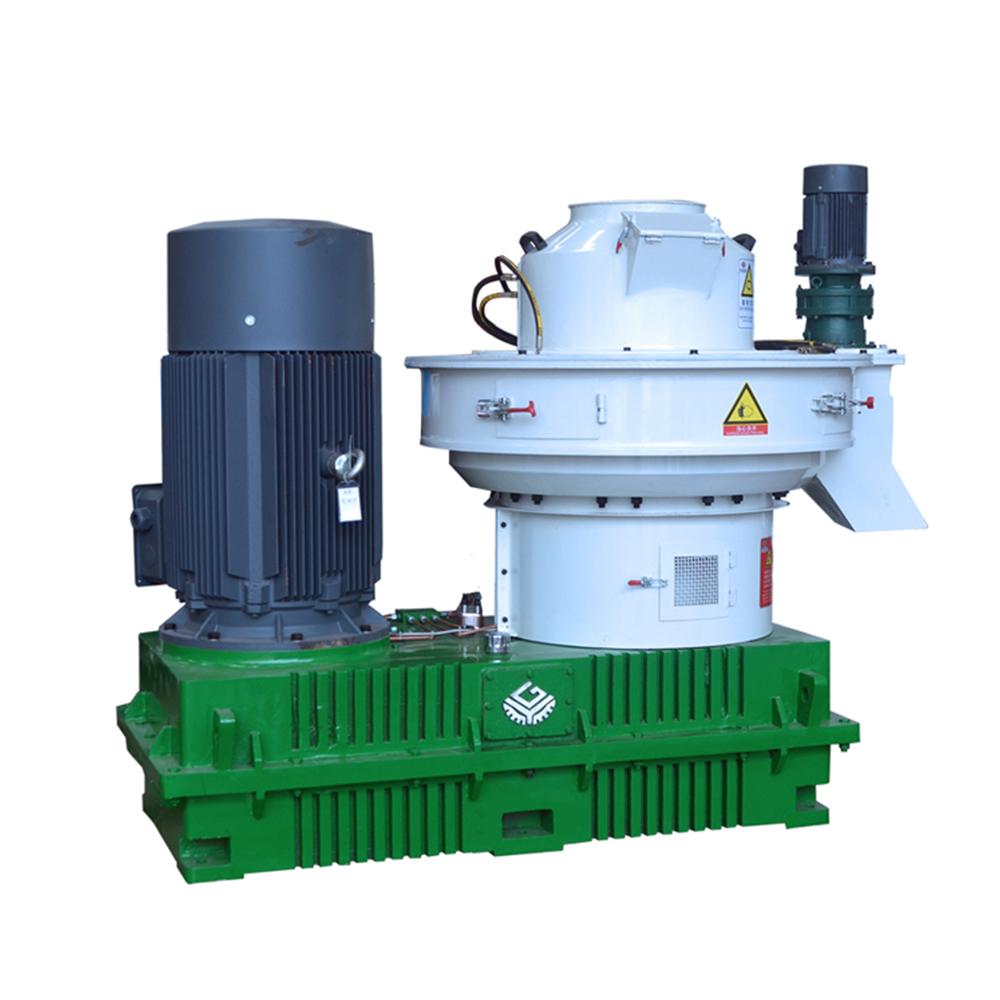

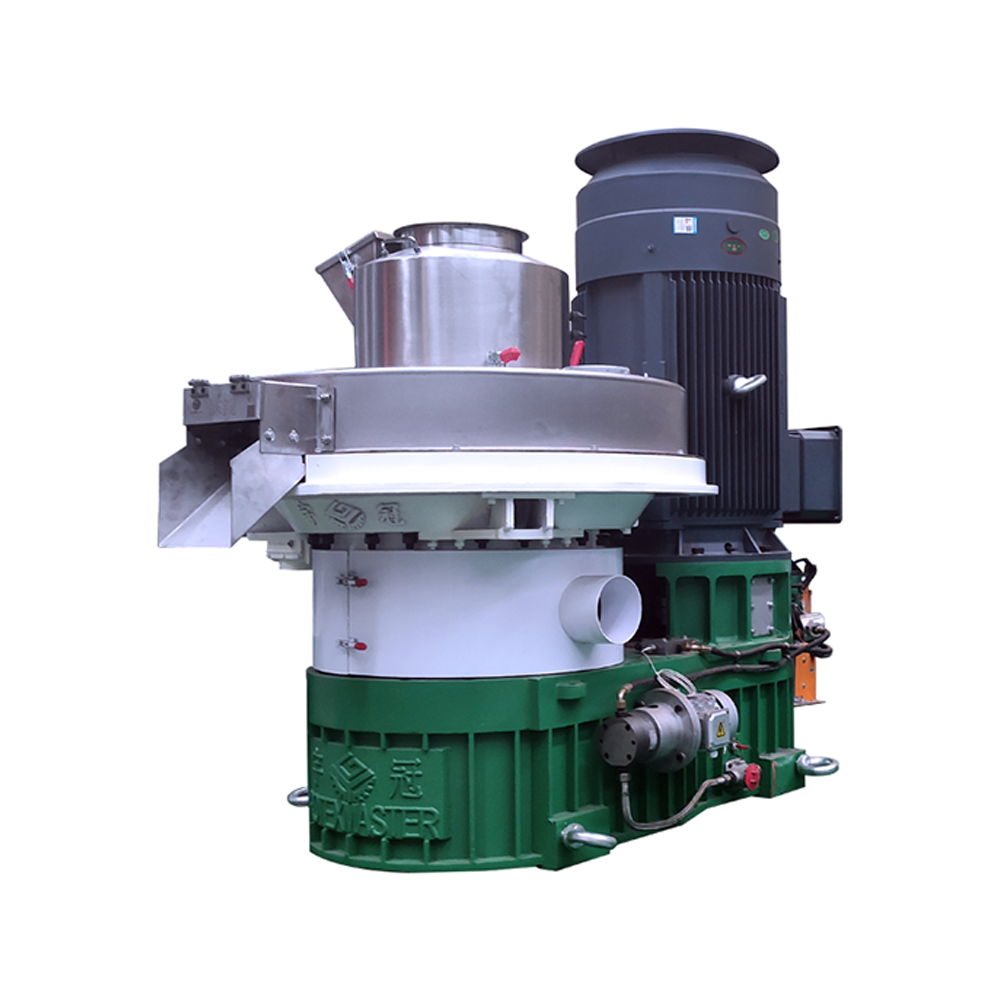

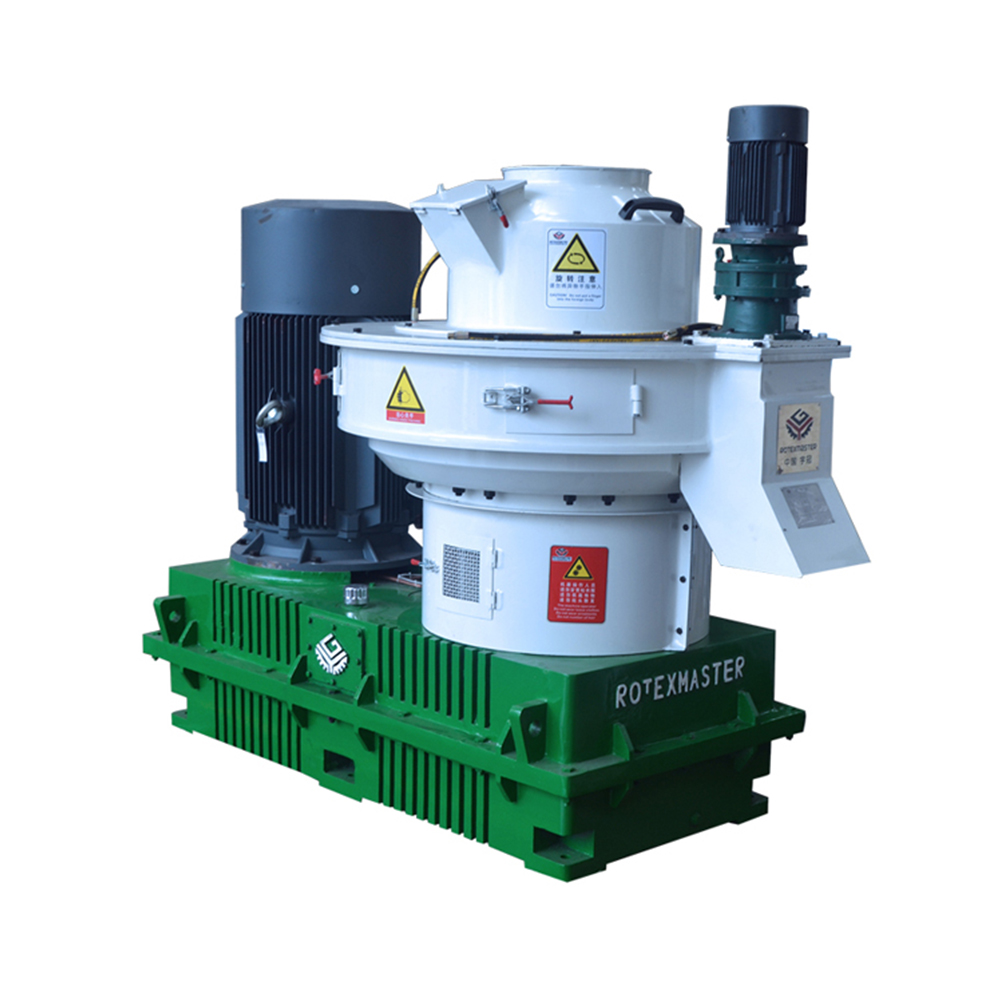

Advantage
1. The mold is placed flat, and the feeding method is vertical direct feeding, which avoids material blockage, has a wide range of material adaptability and strong heat dissipation.
2. Core components: The mold is made of wear-resistant stainless steel, vacuum furnace carburizing heat treatment, uniform heat treatment hardness, and strong wear resistance. The mold is vertical double-layer, which improves utilization, reduces costs, and has the highest cost performance.
3. The motor and gearbox are connected through a plum blossom coupling, which is easier to disassemble and maintain. The gearbox has three-stage reduction and strong load-bearing capacity. The unique separation design of the main shaft ensures the concentricity of the equipment and reduces the failure rate of the equipment.
4. The machine has its own lubrication and cooling system, no need to stop, and the whole machine can achieve 24-hour fully automatic intermittent lubrication, extending the life of the equipment's wearing parts.
5. The unique external design of the rotary device of the material feeding system means that the slewing bearing is no longer corroded by the high-temperature steam in the machine's discharge cover, which greatly extends the service life of the rotary device of the material feeding system.
Video show
|
Raw material
Bambo
Sawdust
Shell
Straw
Wood
Parameter
| Model | Power(kw) | Pellet Size(mm) | Capacity(t/h) | Size(mm) | Weight(t) |
| YGKJ560 | 90/110 | 6-12 | 1-1.5 | 2200*1300*1600 | 5.8 |
| YGKJ700 | 132/160 | 6-12 | 2-3 | 2400*1400*1800 | 7.8 |
| YGKJ880 | 220 | 6-12 | 3-4 | 3000*1500*2300 | 12 |
| YGKJ1280 | 800/1000 | 6-12 | 10-15 | 4920*2950*3350 | 50 |
Key points
1. The mold is laid flat and directly fed, with wide range of material adaptability and strong heat dissipation.
2. Double-layer vertical mold, improve utilization rate, reduce cost, the highest cost performance.
3. The special reducer for pellet machine adopts parallel axis helical gear meshing, good meshing property, stable transmission, small vibration, small noise, large degree of gear fitting, which reduces the load of each pair of gears and improves the bearing capacity of the gears.
4. The unique separation design of the spindle ensures the concentric of the equipment and reduces the failure rate of the equipment.
5. No need to stop the machine, the whole machine can realize 24 hours automatic intermittent lubrication, extend the life of the wearing parts of the equipment.
6. The combination of axial eccentricity and extrusion pressure ensures the shaping degree and smoothness of particles and increases the output.
7. Gear oil is used for bearing lubrication in the bearing room, which can effectively reduce users' lubrication oil consumption.
8. Use my company research and development of new free note oil pressure roller assembly, the user can select A one-time fill lube oil bearing damage replace bearing has been used, or intermittent oiling, every other day or days filling time, according to the actual situation to choose the appropriate filling method, compared with type A pellet machine, greatly reduces the loss of lubrication, cost savings for customers..
Accessories is introduced

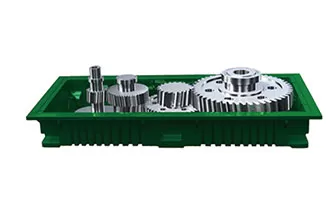

Gear Box

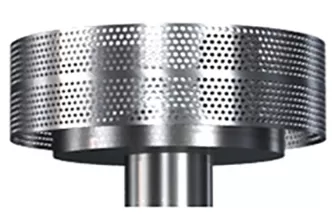

Ring Die

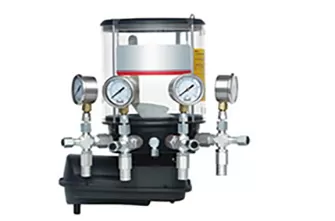

lubricating Grease Pump

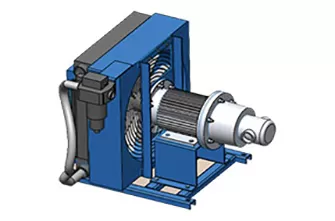

Air Cooled Cooler
Export case

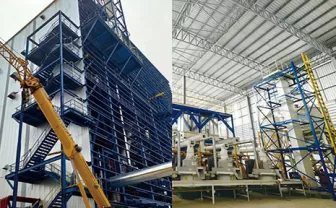

Thailand Annual 110000 Tons Straw Pellet Gasification Production Line

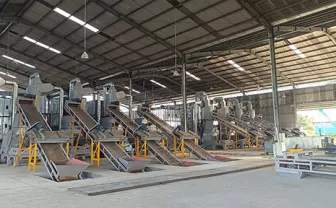

Indonesia 130,000 ton per year wood pellet production line

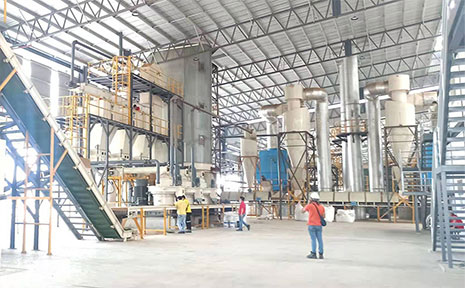

Malaysia 10 Tons Per Hour Wood Pellet Production Line

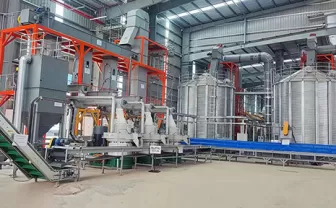

Malaysia annual production 130000 tons biomass wood pellet production line
Exhibition pictures
Japan Exhibition
Indonesia Exhibition
Russia Exhibition
Russia Exhibition
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
FAQ
1. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.
(3) We can negotiate specific payment terms with our client.
2. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.
3. How about the documents after shipment?
After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
